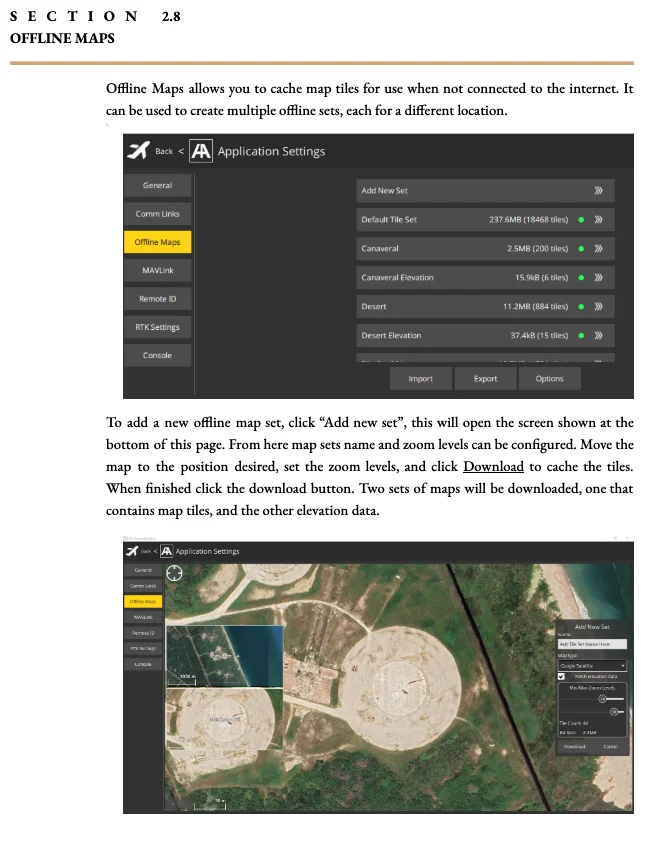

Offline Maps allows you to cache map tiles for use when not connected to the internet. It can be used to create multiple offline sets, each for a different location.
Accessing Offline Maps
To access these settings, navigate through the Application Settings menu:
- General
- Comm Links
- Offline Maps
- MAVLink
- Remote ID
- RTK Settings
- Console
Managing Map Sets
The interface displays existing map sets and their sizes:
- Default Tile Set: 237.6MB (18,468 tiles)
- Canaveral: 2.5MB (200 tiles)
- Canaveral Elevation: 15.9B (6 tiles)
- Desert: 11.2MB (884 tiles)
- Desert Elevation: 37.4kB (15 tiles)
Adding a New Map Set
- Click Add New Set to open the configuration screen.
- Configure the map set name and zoom levels.
- Move the map to the desired position.
- Set the zoom levels.
- Click Download to cache the tiles.
Once the process is complete, two sets of data will be downloaded: one containing map tiles and the other containing elevation data.
Additional Options
- Import: Bring in existing map sets.
- Export: Save map sets for use elsewhere.
Options: Further configuration settings.
