Drone Storage

Each aircraft configuration includes a custom-built case for safe storage and transportation. Storing your aircraft requires following specific pre-storage procedures to ensure it is secured properly.


Important: Payloads and peripherals such as gimbal cameras, sensors, and LiDARs should be removed prior to storage and placed in a separate dedicated case.

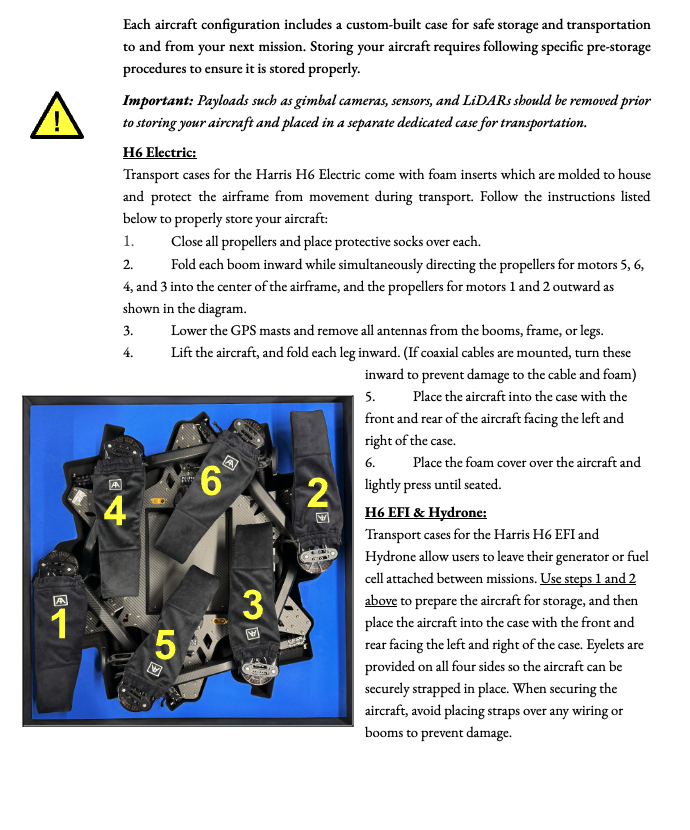

H6 Electric

Transport cases for the Harris H6 Electric include foam inserts molded to protect the airframe.

Storage Instructions:

• Propellers: Close all propellers and place protective socks over each.
• Booms: Fold each boom inward. Direct propellers for motors 5, 6, 4, and 3 into the center of the airframe, and propellers for motors 1 and 2 outward.
• Antennas: Lower the GPS masts and remove all antennas from the booms, frame, or legs.
• Landing Gear: Lift the aircraft and fold each leg inward. If coaxial cables are mounted, turn them inward to prevent damage.
• Case Placement: Place the aircraft into the case with the front and rear facing the left and right sides.
• Secure: Place the foam cover over the aircraft and press lightly until seated.

H6 EFI & Hydrone

These cases allow the generator or fuel cell to remain attached between missions.

Storage Instructions:

• Follow steps 1 and 2 from the H6 Electric instructions.
• Place the aircraft into the case with the front and rear facing the left and right sides.
• Use the provided eyelets on all four sides to strap the aircraft in place.
• Caution: Avoid placing straps over wiring or booms to prevent damage.

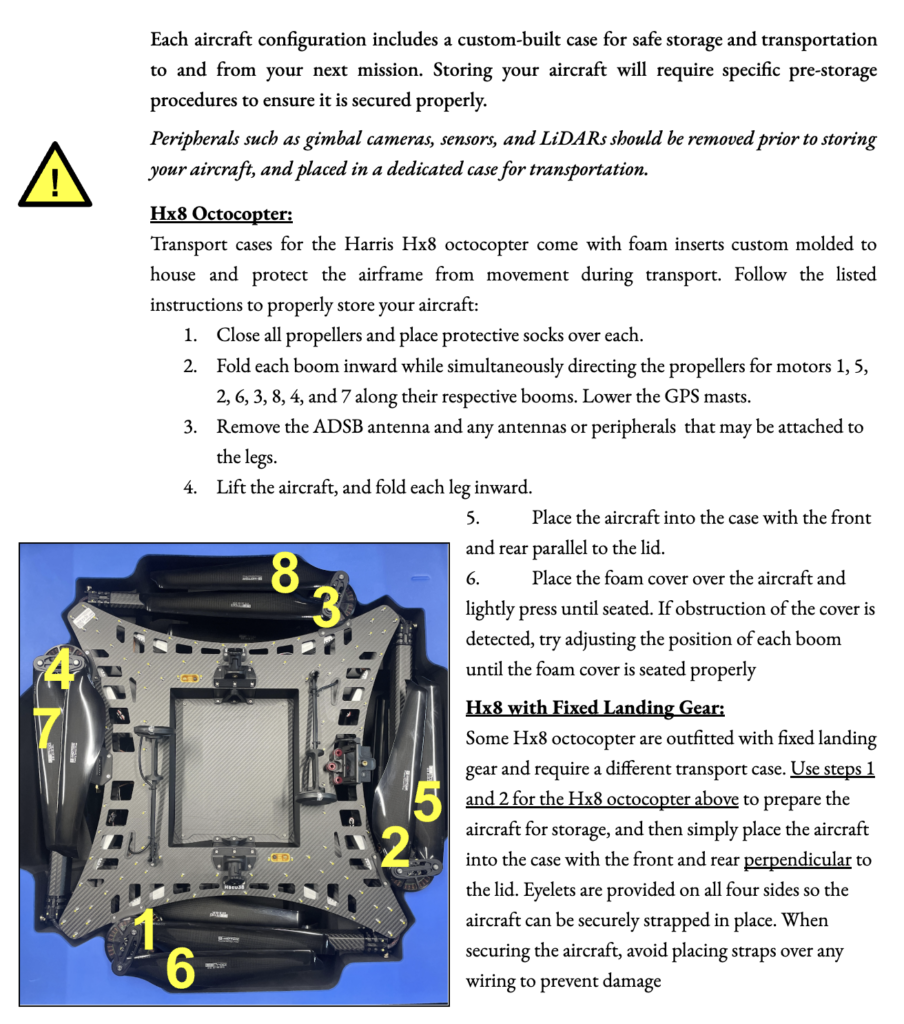

Hx8 Octocopter

Transport cases for the Hx8 include custom molded foam inserts.

Storage Instructions:

• Propellers: Close all propellers and place protective socks over each.
• Booms: Fold each boom inward while directing propellers for motors 1, 5, 2, 6, 3, 8, 4, and 7 along their respective booms.
• Antennas: Lower the GPS masts and remove the ADSB antenna and any peripherals attached to the legs.
• Landing Gear: Lift the aircraft and fold each leg inward.
• Case Placement: Place the aircraft into the case with the front and rear parallel to the lid.
• Secure: Place the foam cover over the aircraft and press lightly. If obstructed, adjust boom positions until the cover seats properly.

Hx8 with Fixed Landing Gear

Storage Instructions:

• Follow steps 1 and 2 from the Hx8 Octocopter instructions.
• Place the aircraft into the case with the front and rear perpendicular to the lid.
• Use the provided eyelets on all four sides to strap the aircraft in place.
• Caution: Avoid placing straps over wiring or booms to prevent damage.

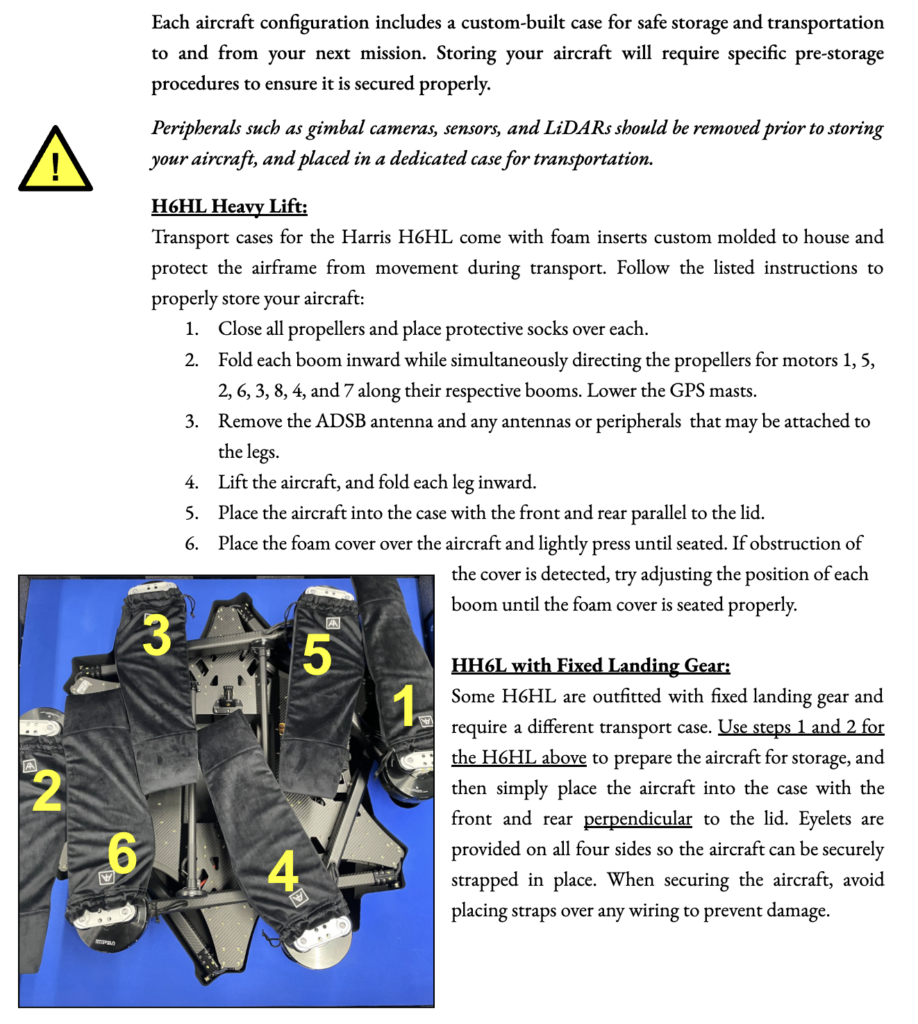

H6HL Heavy Lift

Transport cases for the H6HL include custom molded foam inserts.

Storage Instructions:

• Propellers: Close all propellers and place protective socks over each.
• Booms: Fold each boom inward while directing propellers for motors 1, 5, 2, 6, 3, 8, 4, and 7 along their respective booms.
• Antennas: Lower the GPS masts and remove the ADSB antenna and any peripherals attached to the legs.
• Landing Gear: Lift the aircraft and fold each leg inward.
• Case Placement: Place the aircraft into the case with the front and rear parallel to the lid.
• Secure: Place the foam cover over the aircraft and press lightly. If obstructed, adjust boom positions until the cover seats properly.

H6HL with Fixed Landing Gear

Storage Instructions:

• Follow steps 1 and 2 from the H6HL Heavy Lift instructions.
• Place the aircraft into the case with the front and rear perpendicular to the lid.
• Use the provided eyelets on all four sides to strap the aircraft in place.
• Caution: Avoid placing straps over wiring or booms to prevent damage.
