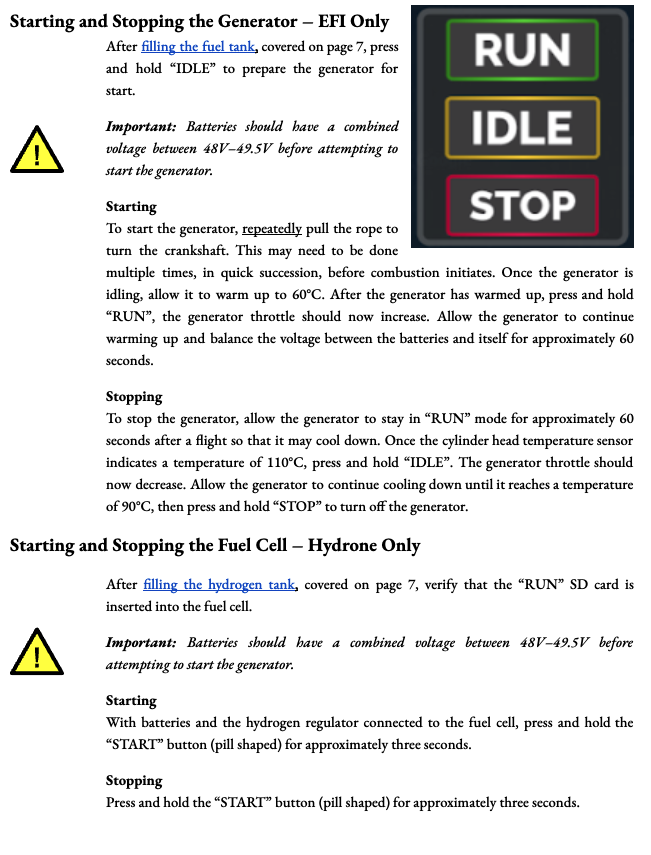

Starting & Stopping the Generator

Starting and Stopping the Generator - EFI Only

Important: Batteries should have a combined voltage between 48V–49.5V before starting.

Starting

• Fuel: Fill the fuel tank.
• Preparation: Press and hold "IDLE".
• Crankshaft: Repeatedly pull the rope in quick succession until combustion initiates.
• Idle: Once idling, allow it to warm up to 60°C.
• Run: Press and hold "RUN"; the throttle should increase.
• Stabilize: Allow it to warm up and balance voltage for approximately 60 seconds.

Stopping

• Cool Down: Stay in "RUN" mode for approximately 60 seconds after a flight.
• Idle: Once the cylinder head temperature reaches 110°C, press and hold "IDLE".
• Final Shutdown: Allow it to cool to 90°C, then press and hold "STOP".

Starting and Stopping the Fuel Cell - Hydrone Only

Important: Batteries should have a combined voltage between 48V–49.5V before starting.

Starting

• Preparation: Fill the hydrogen tank and ensure the "RUN" SD card is inserted.
• Connection: Connect batteries and the hydrogen regulator to the fuel cell.
• Activation: Press and hold the pill-shaped "START" button for approximately 3 seconds.

Stopping

Shutdown: Press and hold the pill-shaped "START" button for approximately 3 seconds.
