After installation, open HAGC and select the "HA" logo in the top left corner. Select "Application Settings" and then the "General" sidebar tab.

HAGroundControl Setup

When you open HAGC for the first time, you will have these prompts to follow:

• Choose to use the Metric System for measurements: d
  • Horizontal Distance: Meters
  • Vertical Distance: Meters
  • Area: Acres
  • Speed: Meters/Second
  • Temperature: Celsius
• Press the "HA" logo in the top left corner and choose "Application Settings".
• In the "video settings" dropdown, manually enter:
  • Source – RTSP Video Stream
  • InVid Camera – RTSP URL "Rtsp://192.168.168.5:554/h264"

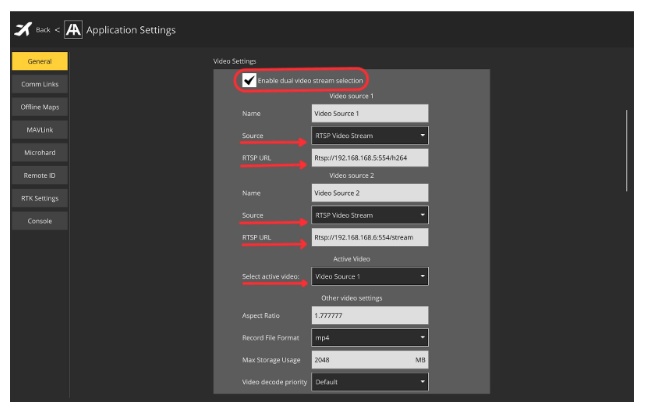

If using a Picoradio with an integrated camera,, you will need to "Enable dual video stream selection". If your aircraft does not use a Picoradio, ignore this step.

• Name – Video Source 1 (InVid): Source – RTSP Video Stream, RTSP URL – "Rtsp://192.168.168.5:554/h264"
• Name – Video Source 2 (Sony ILX with HDMI Encoder): Source – RTSP Video Stream, RTSP URL – "Rtsp://192.168.168.6:554/stream", Select active video – Video Source 1 (InVid)

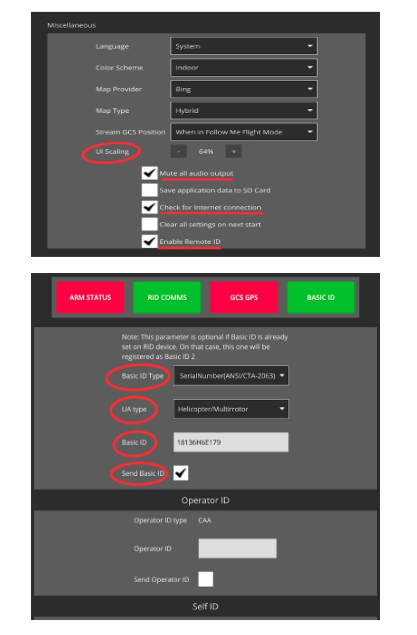

Scroll down to the Miscellaneous portion and set UI scaling to 64%, and check the boxes for:

• "Mute all audio output"
• "Check for internet connection"
• "Enable Remote ID"

Then from the left tabs, choose "Remote ID" and enter the needed information.
