Maintenance Schedules Overview

casper
Updated

Maintenance Schedule: H6E

Drone Inspection and Maintenance Schedule

DescriptionPlatformEach Flight1025751251503004507501000
Fastener Indexes and Torque SpecificationsAll✓
Landing Gear and Leg IntegrityAll✓
Payload and Dampening IntegrityAll✓
Hinge and Boom Arm IntegrityAll✓
Motor Bellhousing and Coil IntegrityAll✓
Propeller Integrity and Blade AlignmentAll✓
Battery Voltage and Cell HealthAll✓
Fuel Tank and Fuel Line IntegrityH6E-EFI✓
Generator FunctionalityH6E-EFI✓
Fuel Cell and Hydrogen Tank FunctionalityHydrone✓
Avionics Integrity & FunctionalityAll✓
Electrical Systems FunctionalityAll✓
Pre-Flight ChecklistAll✓
Airframe IntegrityAll ✓
Fuel and Spark IntegrityH6-EFI ✓
Fuel Cell and Hydrogen Tank IntegrityHydrone ✓
LubricationAll  ✓
Flight Log Motor Balance EvaluationAll  ✓
Fuel and Air System Preventative MaintenanceH6-EFI   ✓
Full Generator MaintenanceH6-EFI    ✓
Propeller ReplacementAll     ✓✓
Battery ReplacementAll       ✓
Generator ReplacementH6-EFI        ✓✓

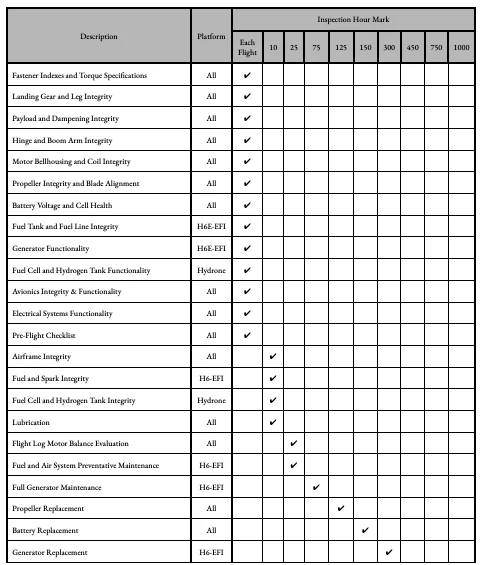

H6E maintenance schedule chart

Maintenance Schedule: Hx8

DescriptionPlatformEach Flight10251251503004507501000
Fastener Indexes and Torque SpecificationsHx8✓
Landing Gear and Leg IntegrityHx8✓
Payload and Dampening IntegrityHx8✓
Hinge and Boom Arm IntegrityHx8✓
Motor Bellhousing and Coil IntegrityHx8✓
Propeller Integrity and Blade AlignmentHx8✓
Battery Voltage and Cell HealthHx8✓
Avionics Integrity & FunctionalityHx8✓
Electrical Systems FunctionalityHx8✓
Pre-Flight ChecklistHx8✓
Airframe IntegrityHx8 ✓
LubricationHx8 ✓
Flight Log Motor Balance EvaluationHx8  ✓
Propeller ReplacementHx8   ✓
Battery ReplacementHx8    ✓
Hinge and Landing Gear ReplacementHx8     ✓
Motor ReplacementHx8      ✓
Full Aircraft Maintenance ReviewHx8       ✓
Electronic Speed Controller ReplacementHx8       ✓
Aircraft Flight Worthiness AssessmentHx8        ✓
Fuel Cell ReplacementAll     ✓
Motor, Hinge, and Landing Gear ReplacementAll      ✓
Full Aircraft Maintenance ReviewAll      ✓
Electronic Speed Controller ReplacementAll       ✓
Aircraft Flight Worthiness AssessmentAll        ✓

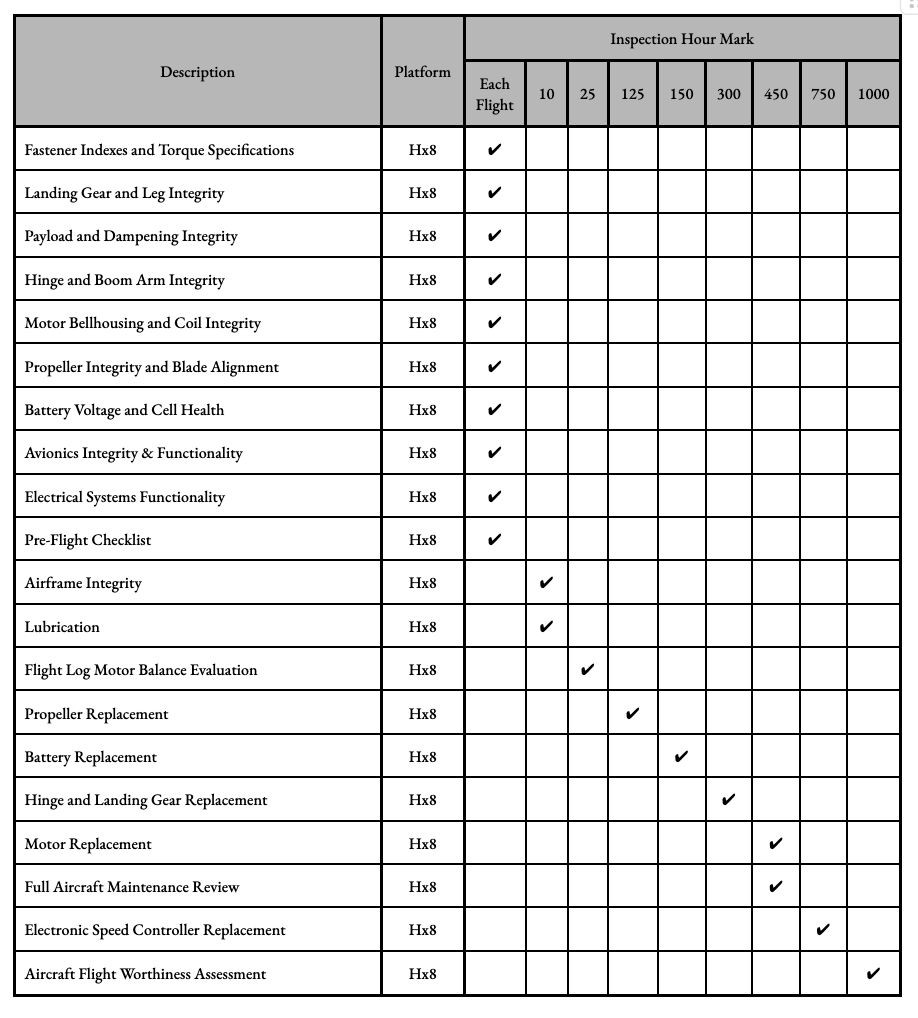

Hx8 maintenance schedule chart



Maintenance schedule notes

Maintenance Schedule: H6HL

DescriptionPlatformEach Flight10251251503004507501000
Fastener Indexes and Torque SpecificationsH6HL✓
Landing Gear and Leg IntegrityH6HL✓
Payload and Dampening IntegrityH6HL✓
Hinge and Boom Arm IntegrityH6HL✓
Motor Bellhousing and Coil IntegrityH6HL✓
Propeller Integrity and Blade AlignmentH6HL✓
Battery Voltage and Cell HealthH6HL✓
Avionics Integrity & FunctionalityH6HL✓
Electrical Systems FunctionalityH6HL✓
Pre-Flight ChecklistH6HL✓
Airframe IntegrityH6HL ✓
LubricationH6HL ✓
Flight Log Motor Balance EvaluationH6HL  ✓
Propeller ReplacementH6HL   ✓
Battery ReplacementH6HL    ✓
Hinge and Landing Gear ReplacementHx8     ✓
Motor ReplacementH6HL      ✓
Full Aircraft Maintenance ReviewH6HL       ✓
Electronic Speed Controller ReplacementH6HL       ✓
Aircraft Flight Worthiness AssessmentH6HL        ✓
Fuel Cell ReplacementAll     ✓
Motor, Hinge, and Landing Gear ReplacementAll      ✓
Full Aircraft Maintenance ReviewAll      ✓
Electronic Speed Controller ReplacementAll       ✓
Aircraft Flight Worthiness AssessmentAll        ✓

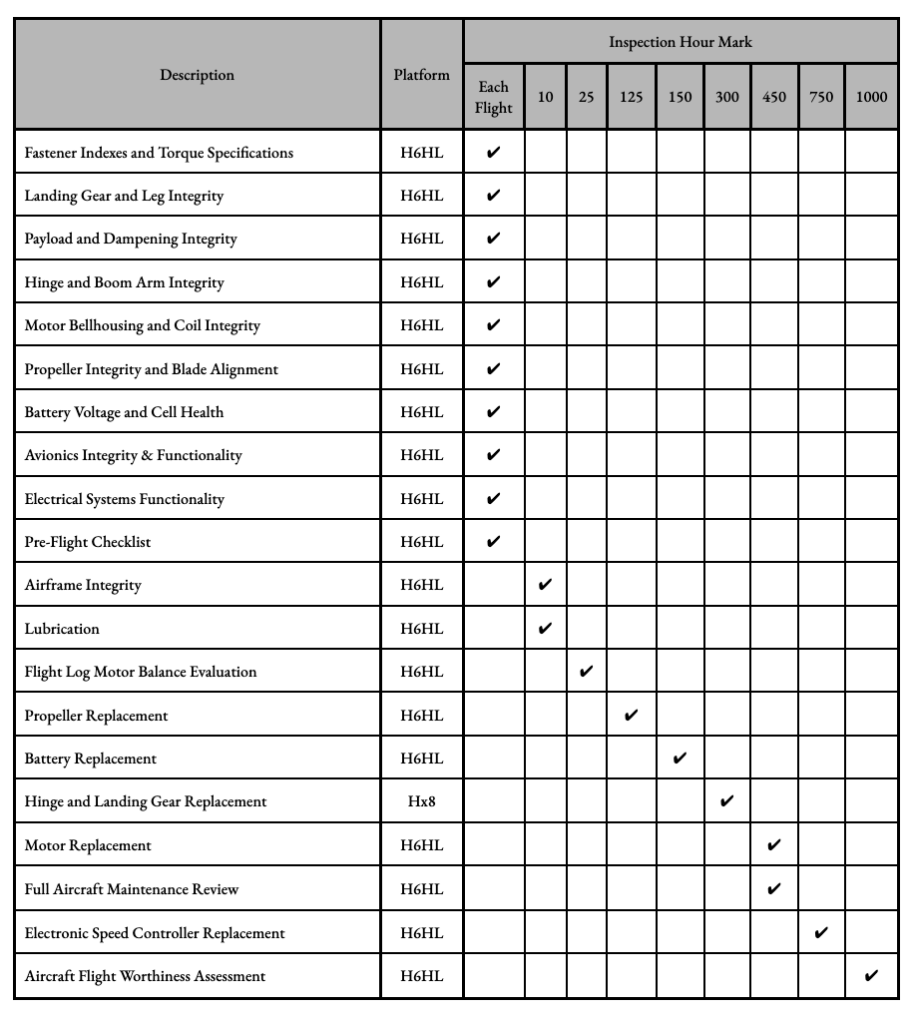

H6HL maintenance schedule chart



Maintenance schedule notes
